Making GraphQL requests#
The GraphQL API largely follows the same patterns as the Python API but has a few key differences.
In GraphQL, there are two different types of requests: a query to search through your data or a mutation of your data. Only the top-level fields in mutation operations are allowed to cause side effects. To accommodate this, in the Raphtory API you can make queries to graphs or metagraphs but must make changes using a mutable graph, node or edge.
This division means that the distinction between Graphs and GraphViews is less important in GraphQL and all non-mutable Graph endpoints are GraphViews while MutableGraphs are used for mutation operations. This is also true for Nodes and Edges and their respective views. Graphs can be further distinguished as either PERSISTENT or EVENT types.
Graphical playground#

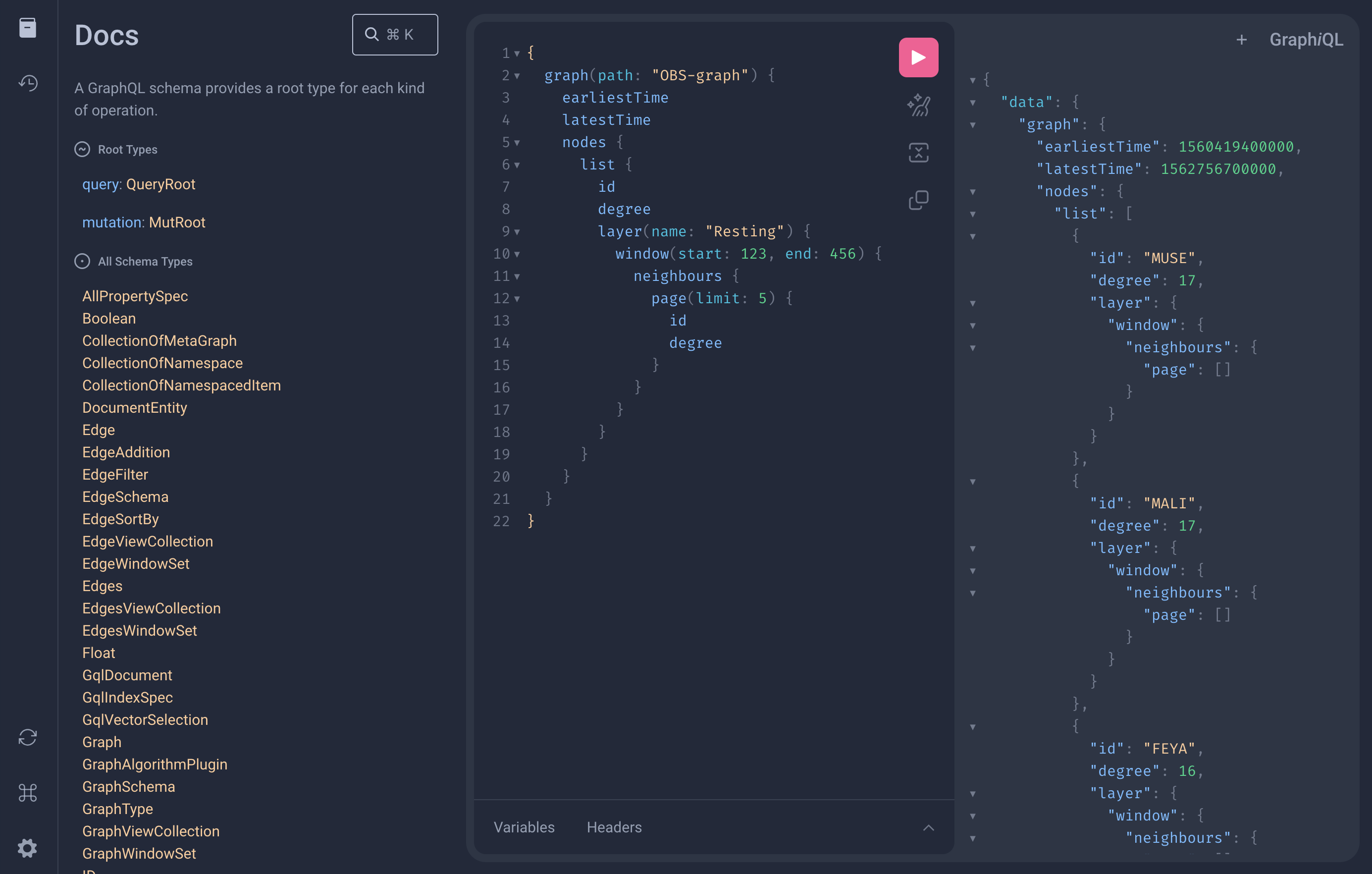

When you start a GraphQL server, you can find your GraphQL UI in the browser at localhost:1736/playground or an alternative port if you specified one.
An annotated schema is available from the documentation tab in the left hand menu of the playground.
Query a graph#
Here are some example queries to get you started:
List of all the nodes#
query {
graph(path: "your_graph") {
nodes {
list {
name
}
}
}
}
List of all the edges, with specific node properties#
To find nodes with age:
query {
graph(path: "your_graph") {
edges {
list {
src {
name
properties {
get(key:"age") {
value
}
}
}
dst {
name
properties {
get(key:"age") {
value
}
}
}
}
}
}
}
This will return something like:
Output
{
"data": {
"graph": {
"edges": {
"list": [
{
"src": {
"name": "Ben",
"properties": {
"get": {
"value": 30
}
}
},
"dst": {
"name": "Hamza",
"properties": {
"get": {
"value": 30
}
}
}
},
]
}
}
}
}
All the queries that can be done in Python can also be done in GraphQL.
Here is an example:
query {
graph(path: "your_graph") {
node(name: "Ben") {
properties {
get(key: "age") {
value
}
}
}
}
}
g.node("Ben").properties.get("age")
Examine the metadata of a node#
Metadata does not change over the lifetime of an object. You can request it with a query like the following:
{
graph(path: "traffic_graph") {
nodes {
list {
name
metadata {
values {
key
value
}
}
}
}
}
}
Which will return something like:
Output
{
"data": {
"graph": {
"nodes": {
"list": [
{
"name": "ServerA",
"metadata": {
"values": [
{
"key": "datasource",
"value": "network_traffic_edges.csv"
},
{
"key": "server_name",
"value": "Alpha"
},
{
"key": "hardware_type",
"value": "Blade Server"
}
]
}
},
{
"name": "ServerB",
"metadata": {
"values": [
{
"key": "datasource",
"value": "network_traffic_edges.csv"
},
{
"key": "server_name",
"value": "Beta"
},
{
"key": "hardware_type",
"value": "Rack Server"
}
]
}
}
]
}
}
}
}
Examine the properties of a node#
Properties can change over time so it is often useful to make a query for a specific time or window.
{
graph(path: "traffic_graph") {
at(time: 1693555500000) {
nodes {
list {
name
properties {
values {
key
value
}
}
}
}
}
}
}
Which will return something like:
Output
{
"data": {
"graph": {
"at": {
"nodes": {
"list": [
{
"name": "ServerA",
"properties": {
"values": []
}
},
{
"name": "ServerB",
"properties": {
"values": [
{
"key": "OS_version",
"value": "Red Hat 8.1"
},
{
"key": "primary_function",
"value": "Web Server"
},
{
"key": "uptime_days",
"value": 45
}
]
}
},
{
"name": "ServerC",
"properties": {
"values": []
}
}
]
}
}
}
}
}
Querying GraphQL in Python#
You can also send GraphQL queries in Python directl using the .query() function on a RaphtoryClient. The following example shows you how to do this:
from raphtory import graphql
from raphtory.graphql import GraphServer
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
query = """{graph(path: "graph") { created lastOpened lastUpdated }}"""
result = client.query(query)
Pass your graph object string into the client.query() method to execute the GraphQL query and retrieve the result in a python dictionary object.
Output
{'graph': {'created': 1729075008085, 'lastOpened': 1729075036222, 'lastUpdated': 1729075008085}}
Mutation requests#
You can also mutate your graph. This can be done both in the GraphQL IDE and in Python.
From GraphQL these operations are available from the Mutation root which operates on mutable objects by specified by a path.
Note
Some methods to mutate the graph are exclusive to Python.
Sending a graph#
You can send a graph to the server and overwrite an existing graph if needed.
from raphtory.graphql import GraphServer
tmp_work_dir = tempfile.mkdtemp()
with GraphServer(tmp_work_dir).start():
client = RaphtoryClient("http://localhost:1736")
g = Graph()
g.add_edge(1, "bob", "emma")
g.add_edge(2, "sally", "tony")
client.send_graph(path="g", graph=g, overwrite=True)
To check your query:
query = """{graph(path: "g") {nodes {list {name}}}}"""
client.query(query)
This should return:
Output
{
"graph": {
"nodes": {
"list": [
{"name": "bob"},
{"name": "emma"},
{"name": "sally"},
{"name": "tony"},
]
}
}
}
Receiving graphs#
You can retrieve graphs from a "path" on the server which returns a Python Raphtory graph object.
g = client.receive_graph("path/to/graph")
g.edge("sally", "tony")
Creating a new graph#
This is an example of how to create a new graph in the server.
The first parameter is the path of the graph to be created and the second parameter is the type of graph that should be created, this will either be EVENT or PERSISTENT. An explanation of the different types of graph can be found here
mutation {
newGraph(path: "new_graph", graphType: PERSISTENT)
}
from raphtory.graphql import GraphServer
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.new_graph("path/to/new_graph", "EVENT")
The returning result to confirm that a new graph has been created:
Output
{
"data": {
"newGraph": true
}
}
Moving a graph#
It is possible to move a graph to a new path on the server.
mutation {
moveGraph(path: "graph", newPath: "new_path")
}
from raphtory.graphql import GraphServer
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.move_graph("path/to/graph", "path/to/new_path)
The returning GraphQL result to confirm that the graph has been moved:
Output
{
"data": {
"moveGraph": true
}
}
Copying a graph#
It is possible to copy a graph to a new path on the server.
mutation {
copyGraph(path: "graph", newPath: "new_path")
}
from raphtory.graphql import GraphServer
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.copy_graph("path/to/graph", "path/to/new_path)
The returning GraphQL result to confirm that the graph has been copied:
Output
{
"data": {
"copyGraph": true
}
}
Deleting a graph#
It is possible to delete a graph on the server.
mutation {
deleteGraph(path: "graph")
}
from raphtory.graphql import GraphServer
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.delete_graph("graph")
The returning GraphQL result to confirm that the graph has been deleted:
Output
{
"data": {
"deleteGraph": true
}
}
Updating the graph#
It is possible to update the graph using the remote_graph() method.
from raphtory.graphql import GraphServer
work_dir = tempfile.mkdtemp()
with GraphServer(work_dir).start():
client = RaphtoryClient("http://localhost:1736")
client.new_graph("path/to/event_graph", "EVENT")
rg = client.remote_graph("path/to/event_graph")
rg.add_edge(1, "sally", "tony", layer="friendship")
Once you have updated the graph, for example by adding an edge, you can receive a graph by using receive_graph() and specifying the path of the graph you would like to receive.
g = client.receive_graph("path/to/event_graph")
