User Interface overview#

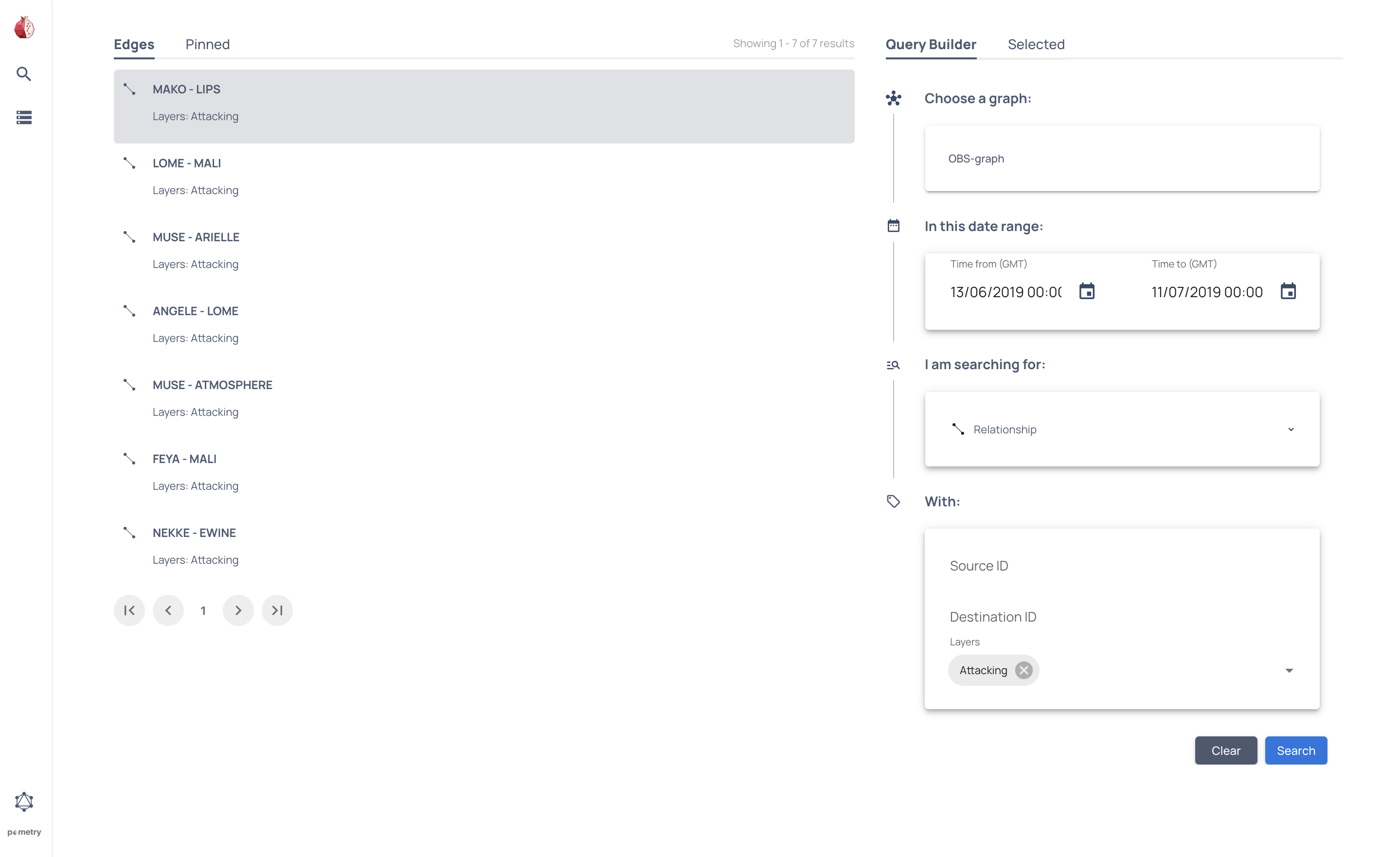

Search page#
The Search page consists of the following elements:
- Global menu - Switch between any of the main pages.
- Search results - Shows the results of your query.
- Pinned results - Shows any results you have pinned.
- Query Builder - Search a selected graph using the options provided.
- Selected - Shows contextual information about the current selection.

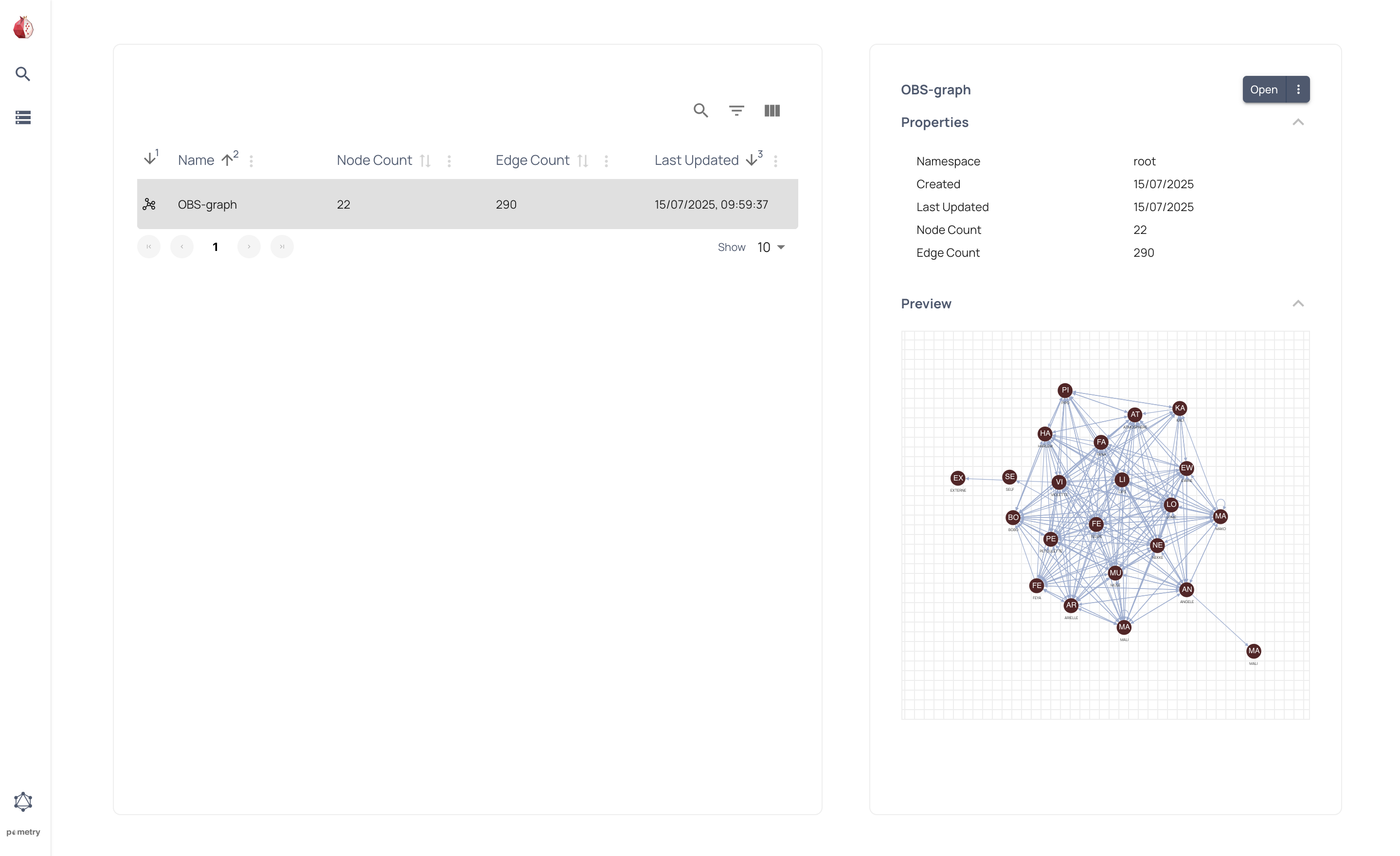

Graphs page#
The Graphs page consists of the following elements:
- Global menu - Switch between any of the main pages.
- Graphs list - Shows the available graphs.
- Context menu - Shows contextual information about the current selection.

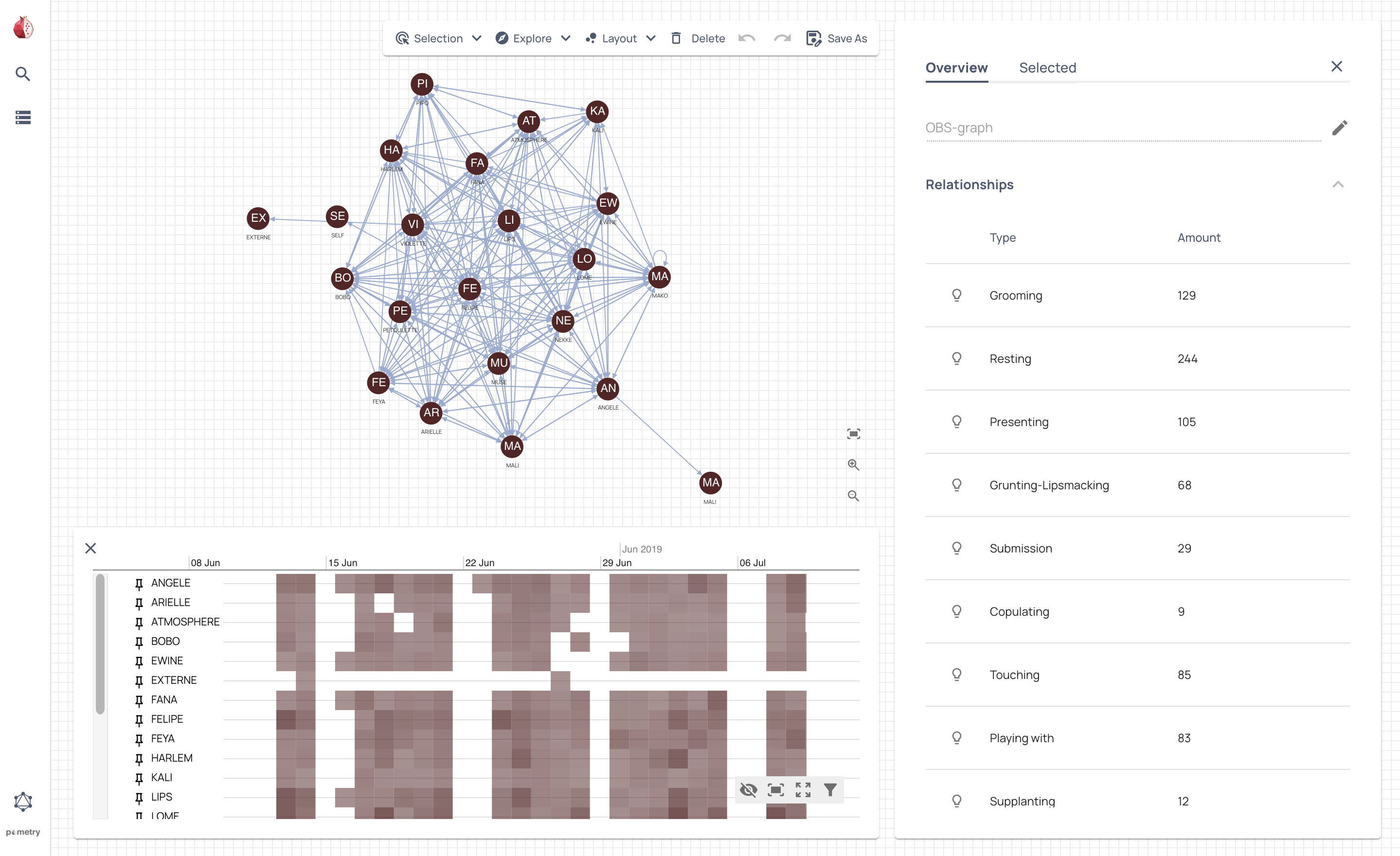

Graph view#
The Graph view displays the graph or sub-graph you have selected and provides information on that selection. You can also refine your selection further or save it as a new graph.
The Graph view consists of the following elements:
- Global menu - Switch between any of the main pages.
- Toolbar - Manipulate the current selection.
- Context menu - Shows contextual information about the current selection.
- Overview - Information the currently selected graph or sub-graph.
- Selected - Information about the selected node or edge.
- Graph canvas - Displays the current graph or sub-graph. You can select a node or edge to show it's information in the Context menu.
- Temporal view - Displays the edges of the current graph or sub-graph as a timeline of events. On longer timescales edges are shown as a heatmap instead of discrete events.

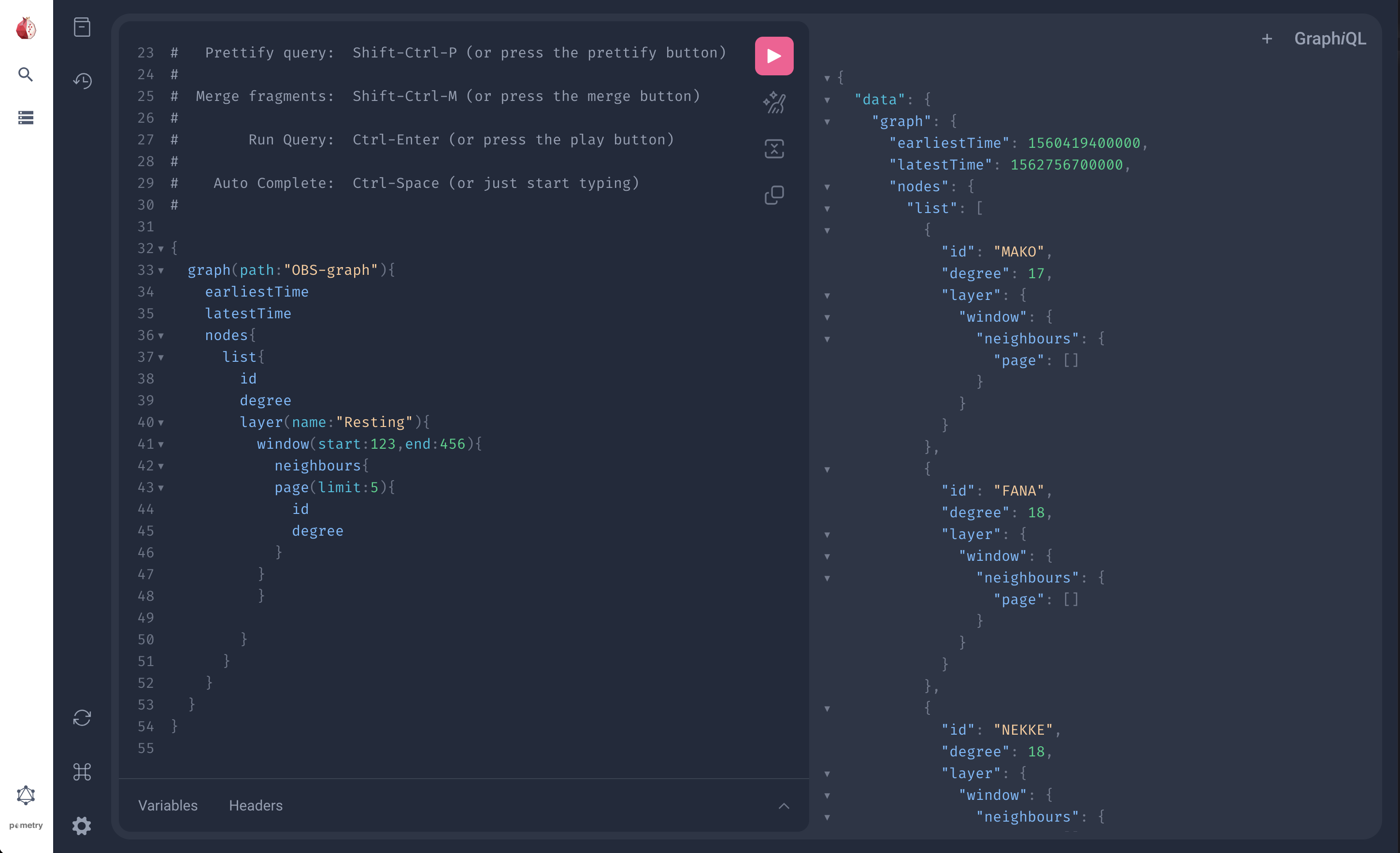

GraphQL playground#
This page allows you to access the standard GraphiQL playground.
